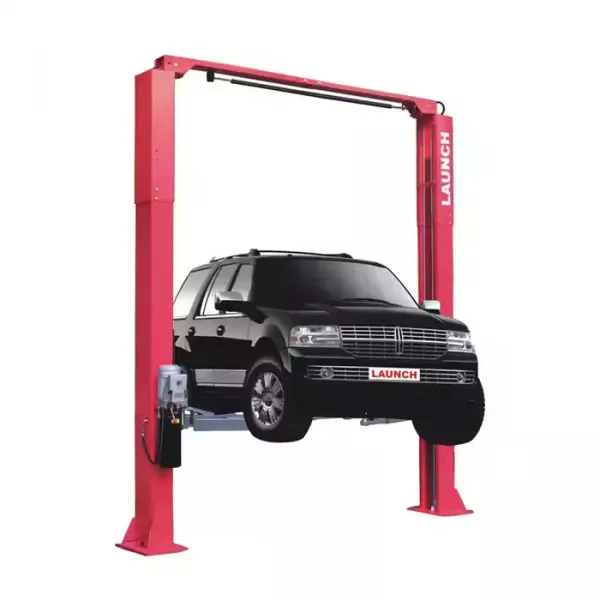

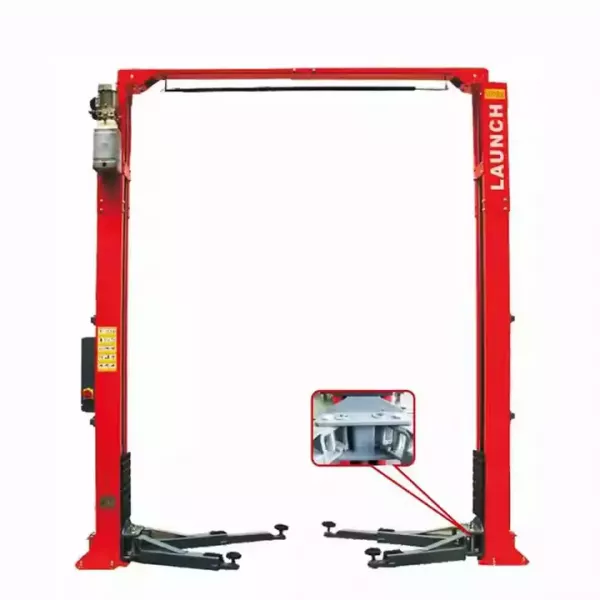

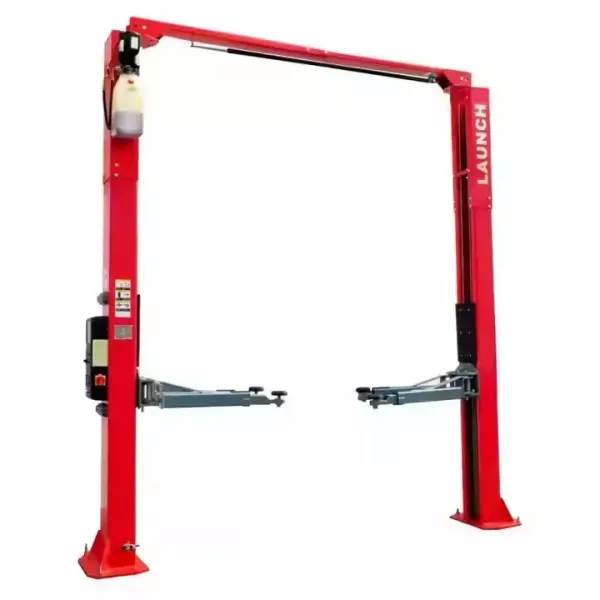

Launch TLT240SC Two Post Car Lift – 4000KG Capacity

The Launch TLT240SC is a robust two-post car lift designed for professional automotive workshops, repair centers, and garages. With a lifting capacity of 4000KG, this lift ensures superior performance through its dual hydraulic cylinders and high-strength chain drive, guaranteeing smooth and stable lifting and lowering for vehicles of various sizes, including light lorries and SUVs. The patented slider bracket design enhances replacement efficiency, making it a practical choice for busy service environments. Additionally, all components are CE certified, meeting the stringent demands of garages and workshops for safety and reliability.

Key Features:
Bilateral Manual Safety Unlocking System: Provides enhanced safety during operation, allowing easy control from either side of the lift.
Concealed Cable and Oil Pipe: Offers a sleek and organized appearance, minimizing wear and tear while improving the overall aesthetic of your workspace.
Wire Rope Equalization System: Ensures the synchronous movement of both carriages, preventing vehicle tilting during the lift.
24V Low Voltage Control Box (IP54 Rated): Prioritizes operator safety with a low-voltage electrical system and a weather-resistant design.
24V Cylinder Travel Limit Switch: Protects the hydraulic cylinder, extending its lifespan by preventing overextension.
Door Rubber Pads: Safeguard vehicle doors from damage during lifting, minimizing the risk of scratches or dents.
Adjustable Lifting Pads: Accommodates vehicles with varying clearance heights, perfect for light trucks and SUVs.
CE Certification: Passed rigorous 115% dynamic loading and 150% static loading tests, ensuring it meets European safety standards.
Flexible Installation Options: Offers both symmetric and asymmetric installation types to suit various garage layouts.Benefits:
Stable and Smooth Lifting: Dual hydraulic cylinders and high-strength chain drive provide consistent, vibration-free operation.
Durable Build: The system is built with quality materials and tested for durability, ensuring long-term reliability for your workshop.
Safety Prioritized: Multiple safety features, including the manual unlocking system, low voltage control, and cylinder protection, guarantee secure operation.
Adaptable for Various Vehicle Types: Adjustable lifting pads make the TLT240SC versatile for a range of vehicles, from sedans to SUVs and light trucks.Technical Specifications:
Specification Details
Load Capacity 4000KG
Lifting Height 1920mm
Initial Height 110mm
Lifting Time ≤55 seconds
Lowering Time ≥20s, ≤40 seconds

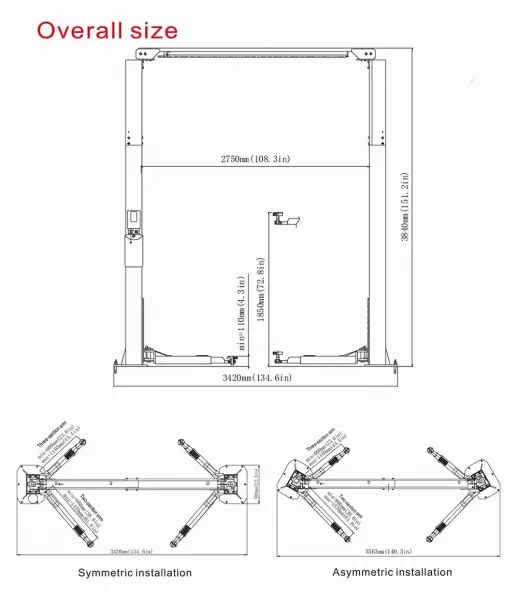

Passing Width for Symmetric Installation / Asymmetric Installation 2486mm / 2415mm
Overall Width for Symmetric Installation / Asymmetric Installation 3420mm / 3563mm
Overall Height 3840mm
Motor Power 2.2KW
Motor Voltage 3 phase / 380V or Single phase / 220V
Working Noise ≤75dB(A)
Working Oil Pressure 18 MPa
