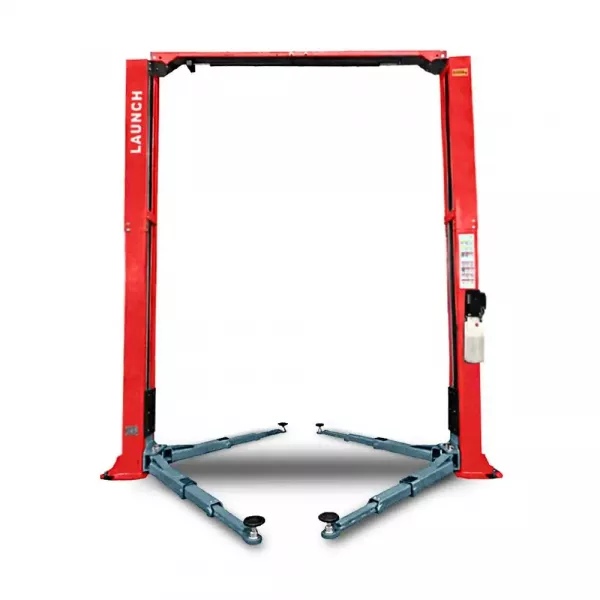

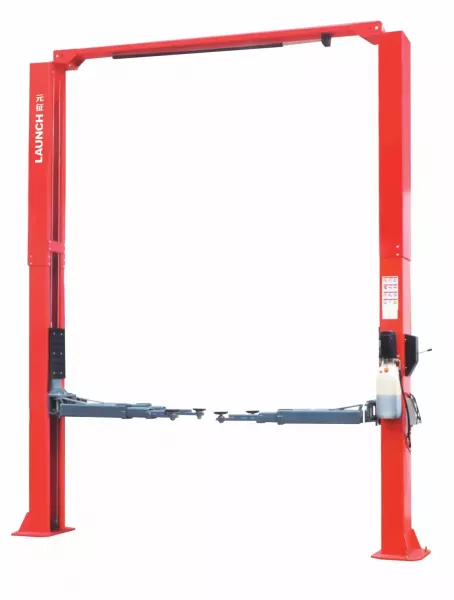

Launch TLT260AT Two Post Car Lift – 6000KG Capacity

The Launch TLT260AT is an industry-leading two-post lift, designed specifically for heavy-duty automotive repair and maintenance. Engineered for professional workshops and automotive services, this lift boasts a 6000KG load capacity, making it ideal for larger vehicles such as trucks and SUVs. Combining advanced technology, robust materials, and exceptional performance, the TLT260AT is a must-have for any automotive repair shop.

Key Features:
6000KG Lifting Capacity: Built to safely lift heavy-duty vehicles like light commercial trucks and bakkies, ensuring a secure and stable work environment.
Overhead Design: The overhead structure ensures a clear floor workspace without obstructions, which is ideal for working underneath vehicles and moving tools or equipment.
Double Hydraulic Cylinders: Ensures stable and smooth lifting and lowering operations, even with large vehicles.
Synchronous Carriage Movement: Utilizes two steel cables for equalization, ensuring the carriages move synchronously to prevent vehicle tilting.
Top Limit Switch: This switch prevents vehicle collisions with the overhead beam by automatically stopping the lift when it reaches its maximum height.
Low Lifting Pad Height: Starting at 110mm, this feature allows the lift to easily accommodate low-clearance vehicles.
CE Certified: Complies with European safety standards, having passed 115% dynamic loading and 150% static loading tests.
Heavy-Duty Installation: Ideal for light commercial vehicles, trucks, and modified vehicles requiring secure lifting for repairs.
Additional Features:
Working Temperature Range: -5°C to +40°C, ensuring reliable performance in a variety of environmental conditions.
Quiet Operation: Produces 75dB of working noise, providing a quieter work environment.
High-Pressure System: Operates at a working oil pressure of 24MPa for maximum lifting power.
Arm Length: 3350mm arms to accommodate large vehicles.
Single Phase Motor: Powered by a 3kW motor, the lift operates on 220V for versatility in different workshop environments.
Relative Humidity Temperature: Functions optimally at 30°C with 80% relative humidity, ensuring reliable performance under high moisture conditions.
Transport/Storage Temperature: Can be safely transported and stored in temperatures ranging from -25°C to +55°C.
Height Above Sea Level: Designed to function effectively at altitudes up to 2000 meters above sea level.Benefits:
Perfect for Large Vehicles: The 6000KG lifting capacity and spacious dimensions make it perfect for handling heavy vehicles like trucks and bakkies.
Maximum Safety: With the top limit switch, synchronous carriage movement, and CE certification, the TLT260AT is designed with safety as a priority.
Overhead Design for Clear Floor Workspace: The overhead structure keeps cables and components off the floor, providing a clear workspace for ease of movement and tool access.
Durability and Performance: Constructed with top-quality materials, it ensures long-lasting reliability for high-performance automotive workshops.
Easy Operation and Installation: Designed for ease of use, it includes a fully automated lifting system, and the installation process is simple and efficient.Specification Symmetric Installation Asymmetric Installation
Rated Load 6000KG 6000KG
Lifting Height 1920mm 1920mm
Lifting Time ≤65 seconds ≤65 seconds
Lowering Time ≥20s, ≤40 seconds ≥20s, ≤40 seconds
Net Weight 1160KG 1160KG
Passing Width 3050mm 2888mm
Overall Width 4110mm 4130mm
Overall Height 4810mm 4810mm
Motor Power 3kW 3kW
Voltage Single phase/220V Single phase/220V
Working Noise 75dB(A) 75dB(A)
Working Oil Pressure 24 MPa 24 MPa
