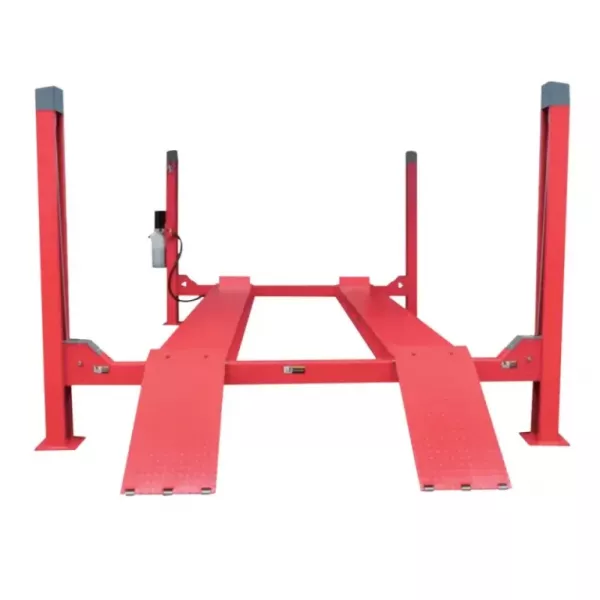

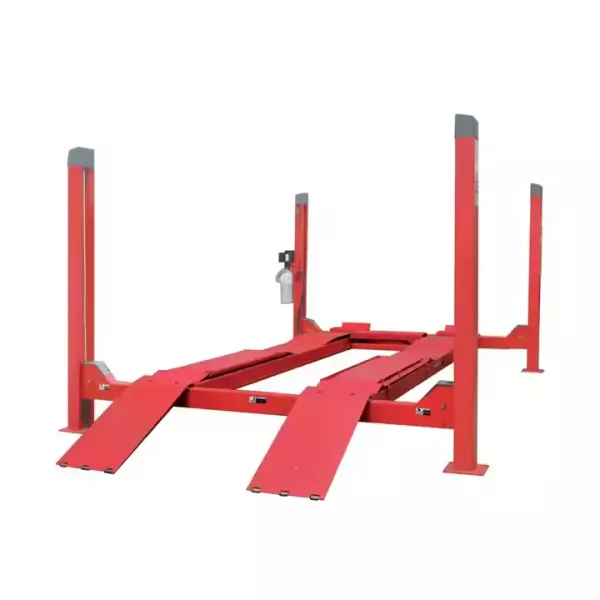

Launch TLT440 Four Post Service Lift – 4000KG Capacity

The Launch TLT440 is a professional-grade four-post service lift, designed for a wide range of vehicle maintenance tasks in service centers, tyre shops, exhaust shops, and vehicle storage facilities. With a 4000KG load capacity, this hydraulic lift offers smooth and stable performance for SUVs, bakkies, and other vehicles, making it an ideal solution for any automotive workshop.

Key Features:

Hydraulic Cylinder & Steel Cable Synchronization: The combination of hydraulic cylinders and steel cables ensures stable and synchronized lifting and lowering of vehicles, preventing tilting or imbalance.

Two-Layer Concealed Plate Structure: This design provides exceptional synchronizing performance with horizontal precision within 1mm, ensuring a balanced lift.

Mechanical Safety Latches: Full-range mechanical safety protection with latches prevents accidental lowering during operation.

Cable Rupture Safety System: Effectively prevents one side of the lift from dropping in case of cable failure, providing maximum safety for both the operator and the vehicle.

Electric Lifting & Manual Lowering Operation: Offers easy electric-powered lifting while allowing for manual lowering via a lever for better control.

Adjustable Platform Distance: The distance between platforms can be adjusted to accommodate vehicles of different sizes, making it versatile for narrow and wide vehicles.

Cylinder Travel Limit Device: Protects the cylinder from overextension, prolonging its operational life.

Passed National Standards & CE Certified: Complies with strict safety standards, ensuring reliability and safety in the workplace.



Benefits:

Ideal for Larger Vehicles: The 4000KG capacity allows the lift to accommodate a wide range of vehicles, from SUVs and bakkies to other larger vehicles, making it versatile for any workshop.

Maximum Safety: With mechanical safety latches, a cable rupture safety system, and cylinder travel limit protection, the TLT440 ensures that both the operator and the vehicle are safe during lifting operations.

Adjustability for Various Vehicle Sizes: The adjustable platform distance allows the lift to be tailored to vehicles with different wheel tracks, enhancing its versatility.

Durability and Strength: The quality powder-coated design offers protection from harsh environments, ensuring long-lasting durability.

Warranty:

One-Year Warranty: Comes with a one-year warranty for additional peace of mind, guaranteeing reliability and customer support.

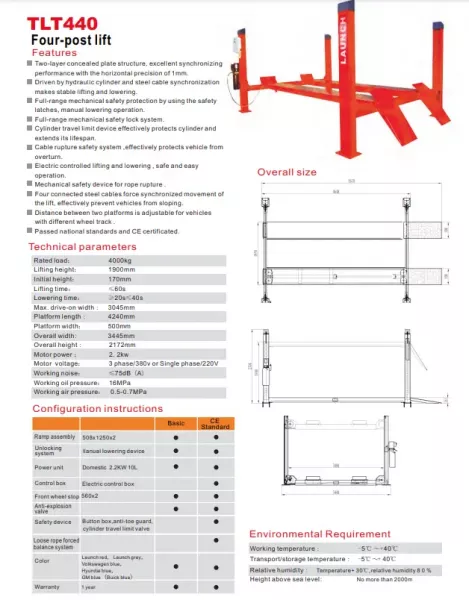

Technical Specifications:

SpecificationDetails

Rated Load4000KG

Lifting Height1850mm

Initial Height170mm

Lifting Time≤80 seconds

Lowering Time≥20s, ≤40 seconds

Max Drive-On Width3045mm

Platform Length4240mm

Platform Width500mm

Overall Width3445mm

Overall Height2172mm

Motor Power2.2KW

Motor Voltage3 phase / 380V or Single phase / 220V

Working Noise≤70dB(A)

Working Oil Pressure18 MPa

Working Air Pressure0.5~0.7 MPa
